Symptom

After upgrading PowerBuilder to a later version, if you switch from Ghostscript to NativePDF, the paper size of the exported PDF file is different from when using Ghostscript.

  • The paper size of the PDF file exported using NativePDF is A4 210 x 297 mm.
  • The paper size of the PDF file exported using Ghostscript is Letter 8 1/2 x 11.0 in.


Environment

PowerBuilder 2017 R3, 2019, 2021 and the latest version


Cause

NativePDF and Ghostscript use different sizes of paper:

  • The paper size used by NativePDF defaults to A4 210 x 297 mm.
  • The paper size used by Ghostscript in PowerBuilder defaults to Letter 8 1/2 x 11 in.


Resolution

If you want to export the same paper size of PDF as Ghostscript with NativePDF, you can use either of the following solutions:

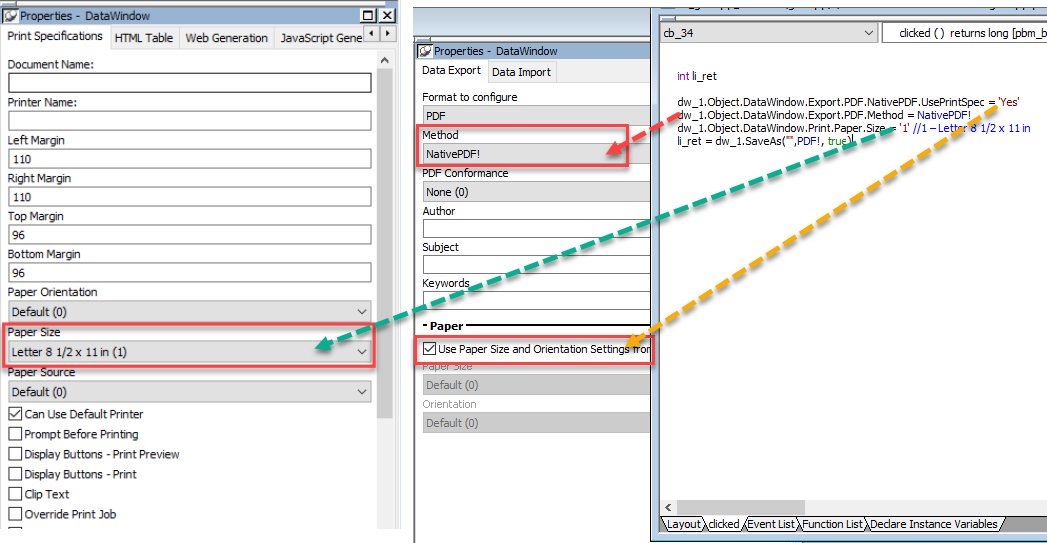

Solution #1 - Enable UsePrintSpec for exporting with NativePDF

Modify the code for exporting or change the corresponding settings in DataWindow Properties.

 int li_ret

 dw_1.Object.DataWindow.Export.PDF.NativePDF.UsePrintSpec = 'Yes'

 dw_1.Object.DataWindow.Export.PDF.Method = NativePDF!

 dw_1.Object.DataWindow.Print.Paper.Size = '1' //1 – Letter 8 1/2 x 11 in

 li_ret = dw_1.SaveAs("",PDF!, true)

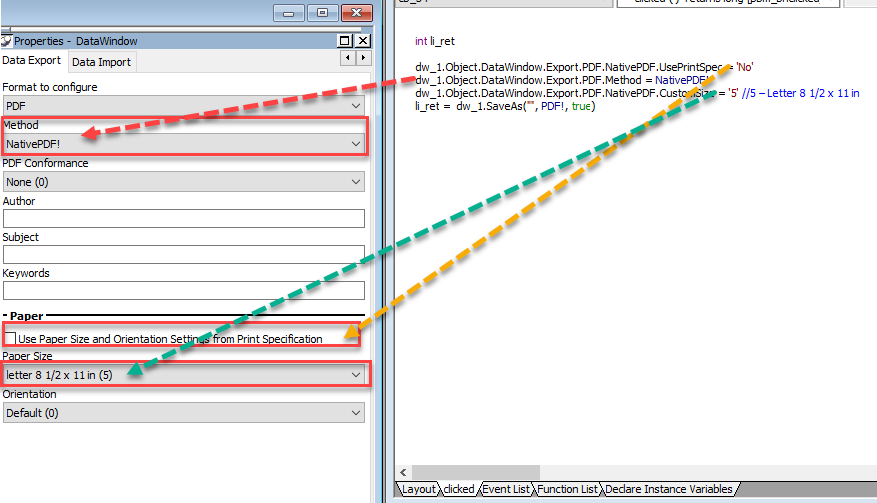

Solution #2 - Set CustomSize for exporting with NativePDF

Modify the code for exporting or change the corresponding settings in DataWindow Properties.

 int li_ret

 dw_1.Object.DataWindow.Export.PDF.NativePDF.UsePrintSpec = 'No'

 dw_1.Object.DataWindow.Export.PDF.Method = NativePDF!

 dw_1.Object.DataWindow.Export.PDF.NativePDF.CustomSize = '5' //5 – Letter 8 1/2 x 11 in

 li_ret =  dw_1.SaveAs("", PDF!, true)


BTW, you can refer to the following documentation for more information on using NativePDF.

https://docs.appeon.com/pb2021/datawindow_reference/XREF_36021_Alphabetical_list.html#XREF_19761_Export_PDF_NativePDF_UsePrintSpec

https://docs.appeon.com/pb2021/pbug/ug16818.html#Saving_as_PDF_using_PDFlib
