Background

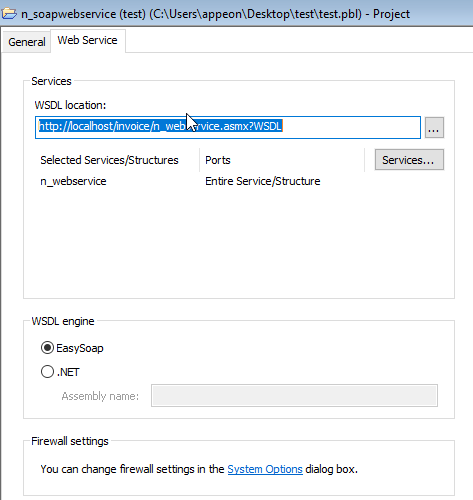

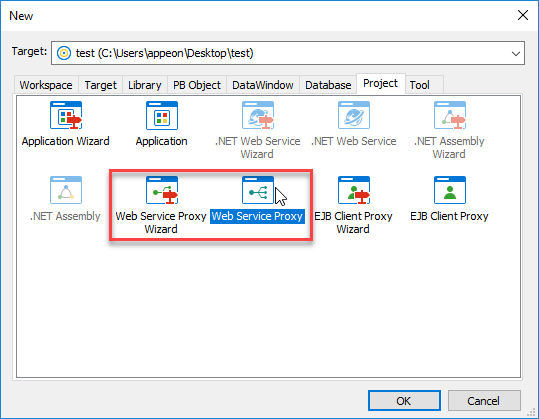

With PowerBuilder prior to PB 2017 R2, in order to consume a SOAP Web service, you need to create a Web service proxy and then associate it with pbsoapclient170.pbd or import pbsoapclient170.pbx.

Then in PB IDE, you instantiate the PB proxy with the SOAP Web service link and use the SOAPConnection object to call the associated Web service methods. Due to historical reasons, there are many limitations and defects calling SOAP Web service using this approach.

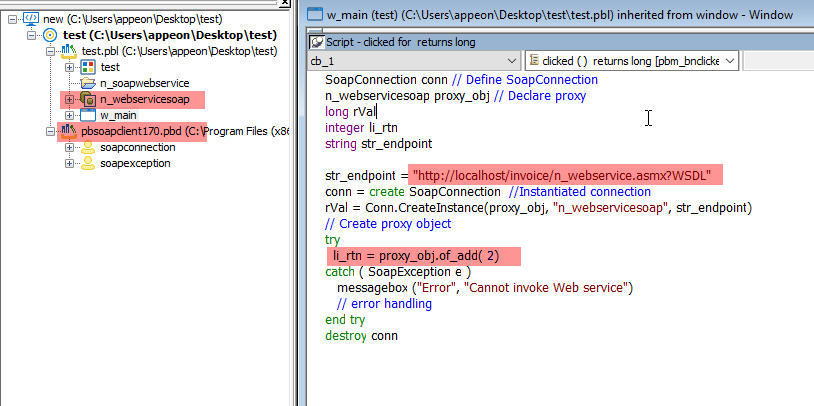

Here is the sample code:

SoapConnection conn // Define SoapConnection

n_webservicesoap proxy_obj // Declare the proxy

long rVal

integer li_rtn

string str_endpoint

str_endpoint = "http://localhost/invoice/n_webservice.asmx?WSDL"

conn = create SoapConnection  //Instantiate connection

rVal = Conn.CreateInstance(proxy_obj, "n_webservicesoap", str_endpoint)

// Create proxy object

try

  li_rtn = proxy_obj.of_add(2)     //invoke Web service of_add method.

catch(SoapException e)

   messagebox("Error", "Cannot invoke Web service")

   // Error handling

end try

destroy conn

Call SOAP Web service using HTTPClient

Since the introduction of HTTPClient object in PB 2017 R2, we have a better option to call SOAP Web service.

1. Find the Correct SOAP Web service parameters

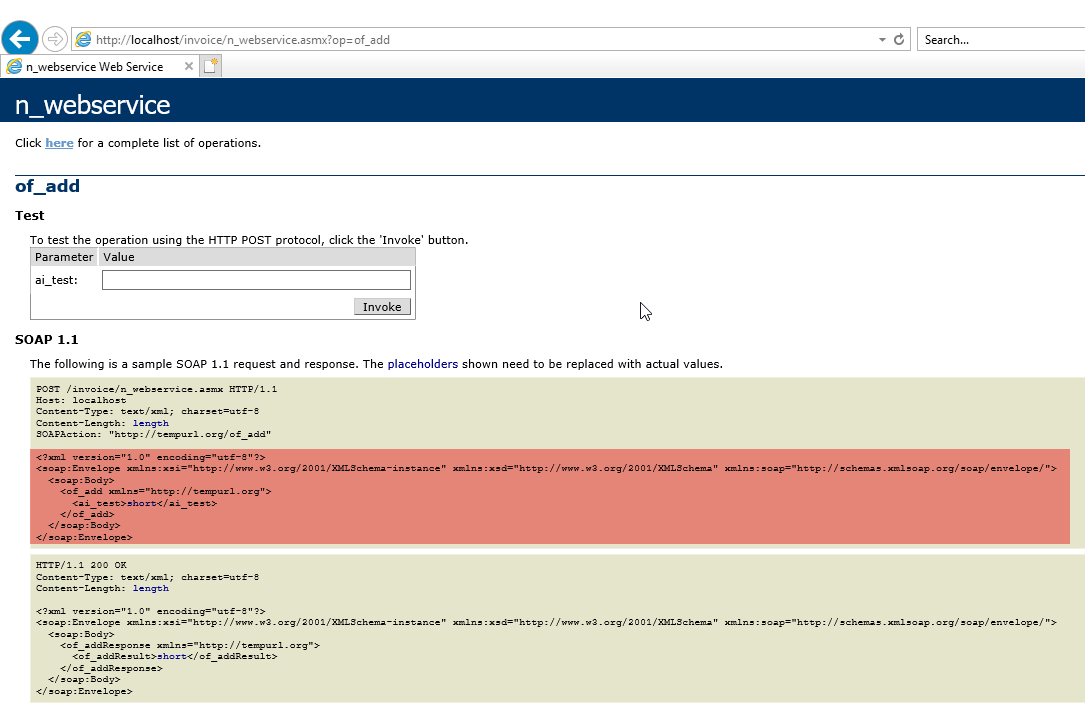

Open the SOAP Web service on IE as shown below. Copy the associated SOAP sample request. Refer to the highlighted content below. (If you don’t see this content, please contact your service provider to get such a sample request.)

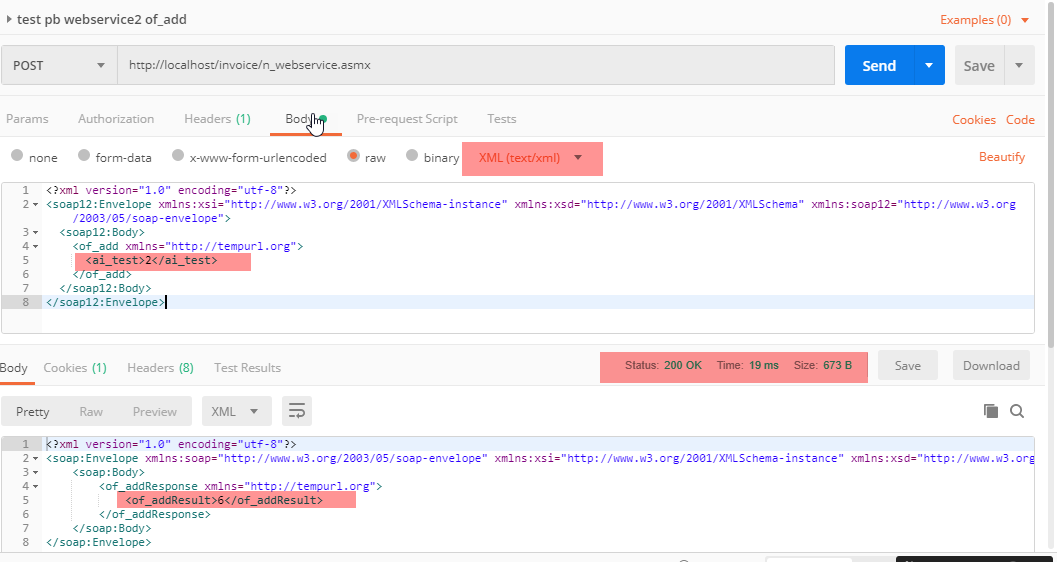

Use a third party tool like Postman to verify what protocol and arguments you need to use to successfully call the Web service API.

Note: You need to replace the argument in the XML you copied in the previous step with the real argument to call the API. In this sample, we replace the word short (data type of the parameter ai_test for the of_add method) with the real argument (2).

2. Use the HTTPClient object to call the API

After you verified successfully with Postman, apply the same protocol and arguments to HTTPClient object in your PB code.

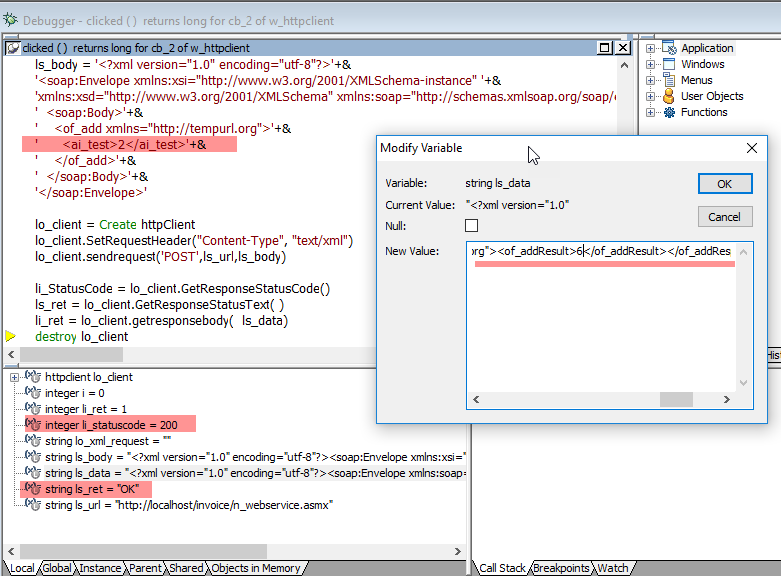

Here is the sample code:

httpClient lo_client

integer li_ret , i , li_StatusCode

String lo_xml_request

string ls_url

string ls_data

string ls_body

string ls_ret

ls_url ="http://localhost/invoice/n_webservice.asmx"

ls_body = '<?xml version="1.0" encoding="utf-8"?>'+&

'<soap:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" '+&

'xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:soap="http://schemas.xmlsoap.org/soap/envelope/">'+&

'  <soap:Body>'+&

'    <of_add xmlns="http://tempurl.org">'+&

'      <ai_test>2</ai_test>'+&

'    </of_add>'+&

'  </soap:Body>'+&

'</soap:Envelope>'

lo_client = Create httpClient

lo_client.SetRequestHeader("Content-Type", "text/xml")

lo_client.sendrequest('POST',ls_url,ls_body)

li_StatusCode = lo_client.GetResponseStatusCode()

ls_ret = lo_client.GetResponseStatusText( )

li_ret = lo_client.getresponsebody(  ls_data)

destroy lo_client

The new approach for calling SOAP Web service is clean and simple and it gives you more flexibility than the previous approach.

Note: If you want to use the PBDOM Object to build the XML content, you can refer to this knowledgebase.

Call simple ASP.NET Web Service using HTTPClient

1. Build a Web Service

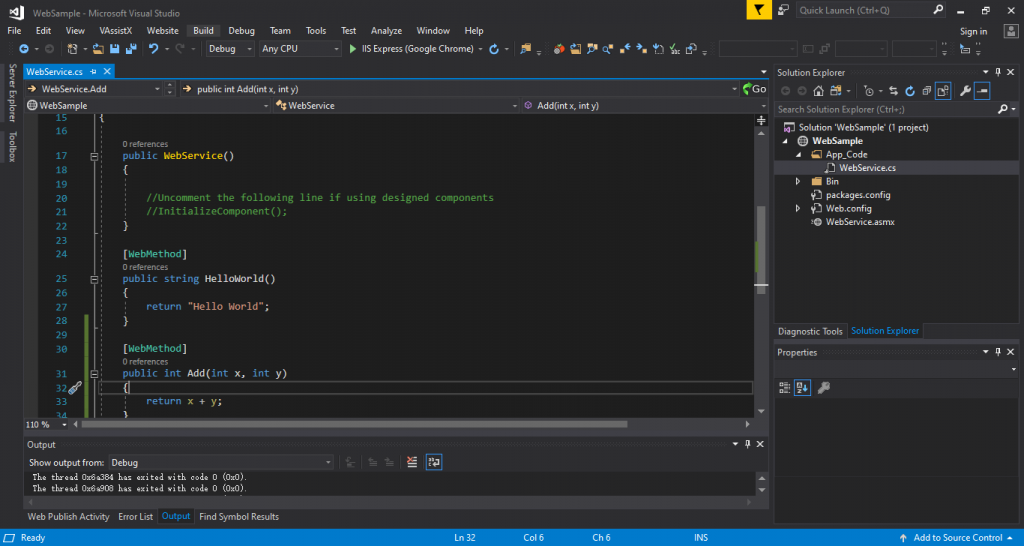

Build a simple Web Service project based on .NET Framework, then directly add a Web Service (ASMX) object WebService into this project.

Here below is the C# code for reference:

using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.Services;

///<summary>

/// Summary description for WebService

///</summary>

[WebService(Namespace = "http://tempuri.org/")]

[WebServiceBinding(ConformsTo = WsiProfiles.BasicProfile1_1)]

// To allow this Web Service to be called from script, using ASP.NET AJAX, uncomment the following line.

// [System.Web.Script.Services.ScriptService]

public class WebService : System.Web.Services.WebService

{

public WebService()

{

//Uncomment the following line if using designed components

//InitializeComponent();

}

[WebMethod]

public string HelloWorld()

{

return "Hello World";

}

[WebMethod]

public int Add(int x, int y)

{

return x + y;

}

}

2. Find the correct arguments to call the WebService

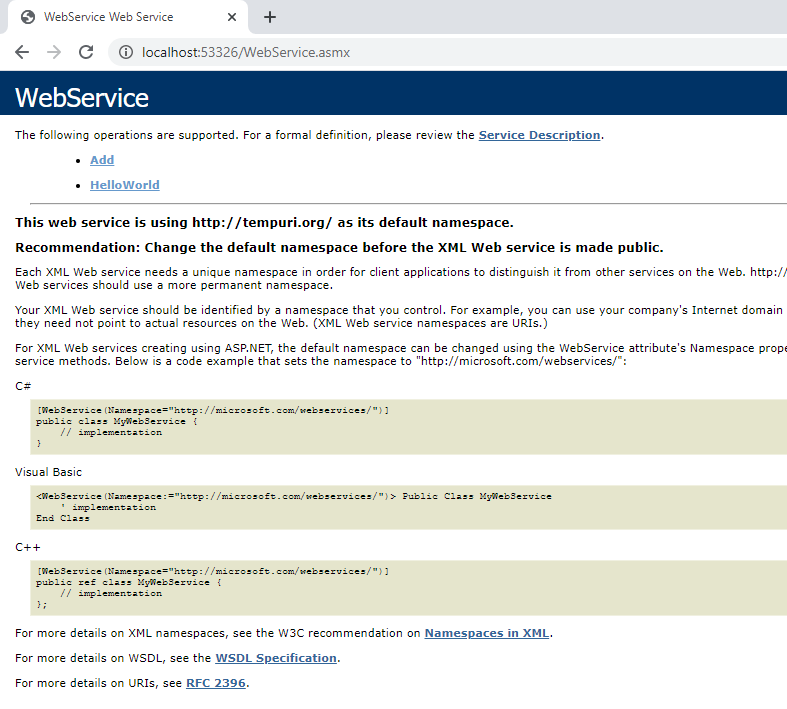

This sample Web Service has only two APIs. One is the HelloWorld method that returns a string and the other one is the Add method that has two int type input parameters and returns an int value.

First of all, use a third party tool to verify what protocol and arguments you need to use to call this Web Service API.

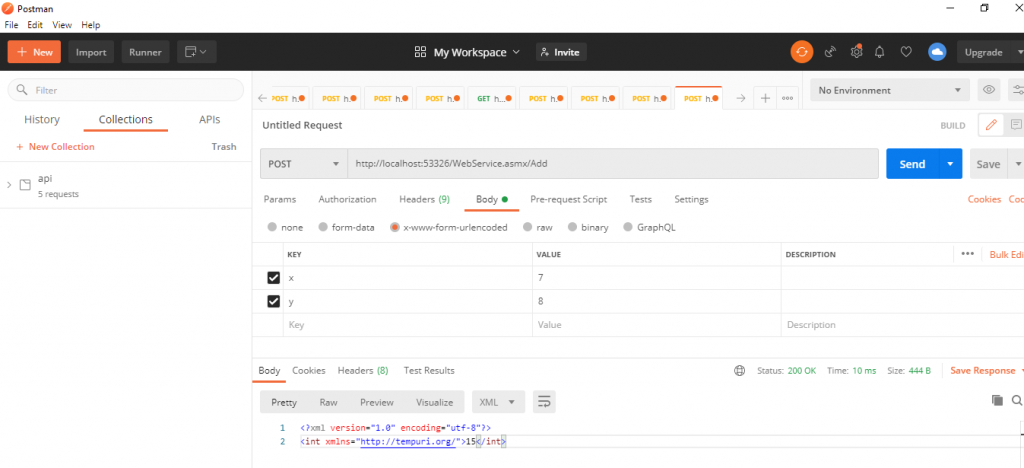

For example, we use Postman to verify it here.

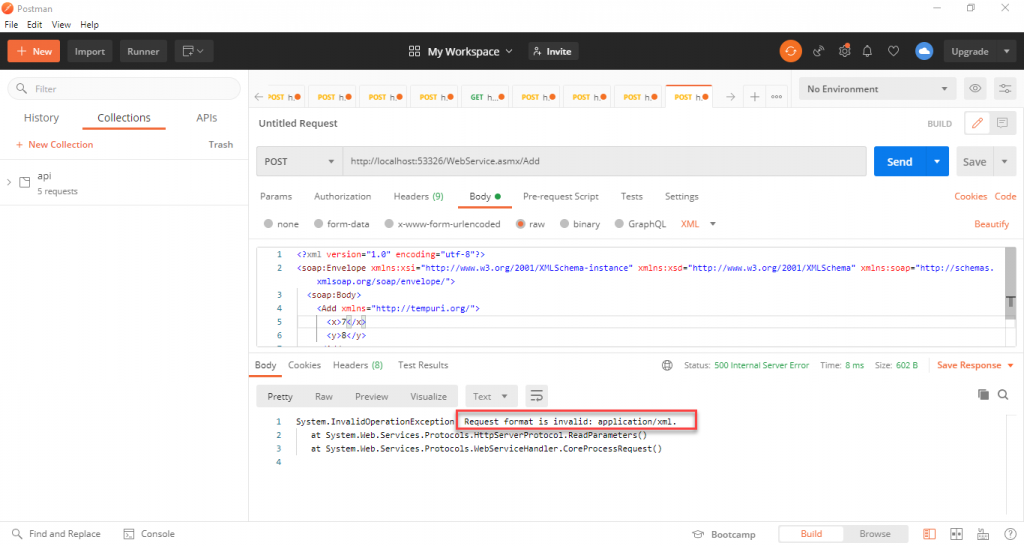

From the result you can see the request format of the current API is different from the one we introduced in the previous section. The Content-Type should be set to application/x-www-form-urlencoded instead of application/xml.

3. Use the HTTPClient object to call the Add method of this API.

After you verified successfully with Postman, apply the same request protocol to the HTTPClient object in your PB code.

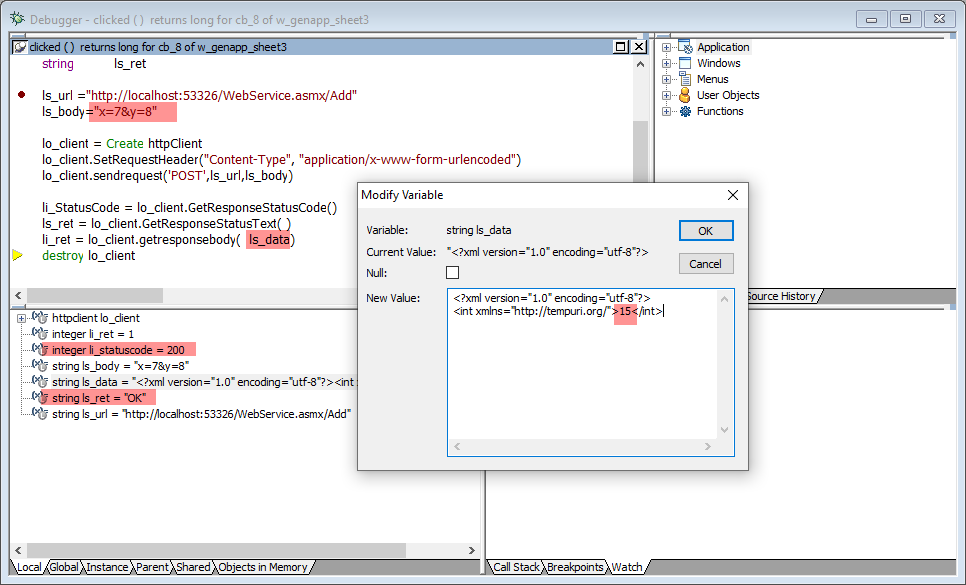

Here below is the sample code:

httpClient lo_client

integer li_ret , li_StatusCode

string ls_url

string ls_data

string ls_body

string ls_ret

ls_url ="http://localhost:53326/WebService.asmx/Add"

ls_body="x=7&y=8"

lo_client = Create httpClient

lo_client.SetRequestHeader("Content-Type", "application/x-www-form-urlencoded")

lo_client.sendrequest('POST',ls_url,ls_body)

li_StatusCode = lo_client.GetResponseStatusCode()

ls_ret = lo_client.GetResponseStatusText( )

li_ret = lo_client.getresponsebody( ls_data)

destroy lo_client
